Before a device can receive updates, it must enroll with Thistle’s backend. There are two Provisioning flows supported: group-enrollment and pre-enrollment. Once a device has been enrolled with Thistle, it will have a unique device_id and device_token that are used for all subsequent communications with Thistle’s backend in order to identify and authenticate the fielded device.

​
Group Enrollment

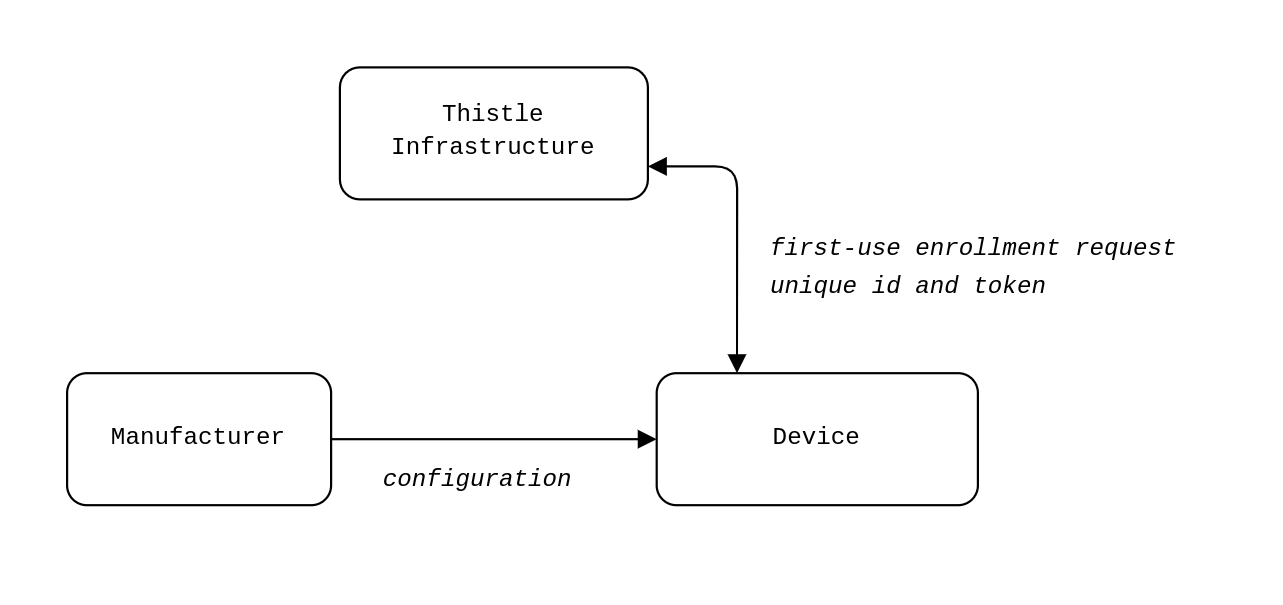

Enrollment Group enrollment allows any device to enroll with Thistle’s backend using a group-shared device enrollment token upon the first invocation of Thistle Update Client. A device enrollment token is uniquelly associated with a Thistle project. It allows the Thistle Update Client to enroll a device to obtain a unique (device_id, device_token, device_certificate_pem, device_private_key_pem) quadruple, if such a quadruple does not already exist. After a successful enrollment, subsequent client-initiated requests will have device-unique device_id and device_token values included for device authentication and authorization. The Thistle Release Helper v1.6.0 (or above) can be used to create a configuration file (template) for a group of devices that can then be put on devices during device manufacturing.
$ ./trh --signing-method="remote" gen-device-config \
--device-name="my_device_name" \
--enrollment-type="group-enroll" \
--persist="/path/to/persist/dir/on/device"
In this flavor of device provisioning, the Thistle Update Client will require an internet connection upon the first boot to enroll the device with Thistle’s backend.

​
Device Pre-enrollment

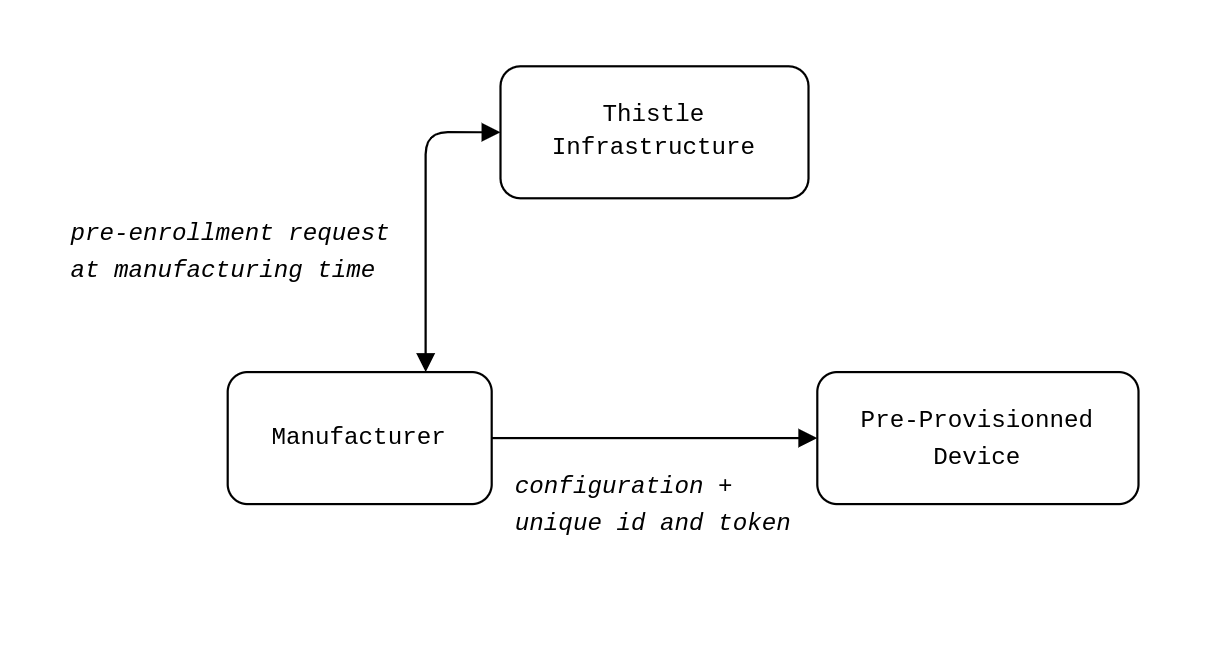

Device Pre-enrollment A pre-enrolled device has a unique device_id, device_token, device_certificate_pem and device_private_key_pem that must be loaded onto the device before the Thistle Update Client is first run. The Thistle Release Helper v1.6.0 (or above) can be used to create a unique configuration for each device, that can then be flashed during device manufacturing.
$ ./trh --signing-method="remote" gen-device-config \
--device-name="my_device_name" \
--enrollment-type="pre-enroll" \
--persist="/path/to/persist/dir/on/device"
The identity file can also be used to pre-enroll devices, see the Identity File section for more information.
