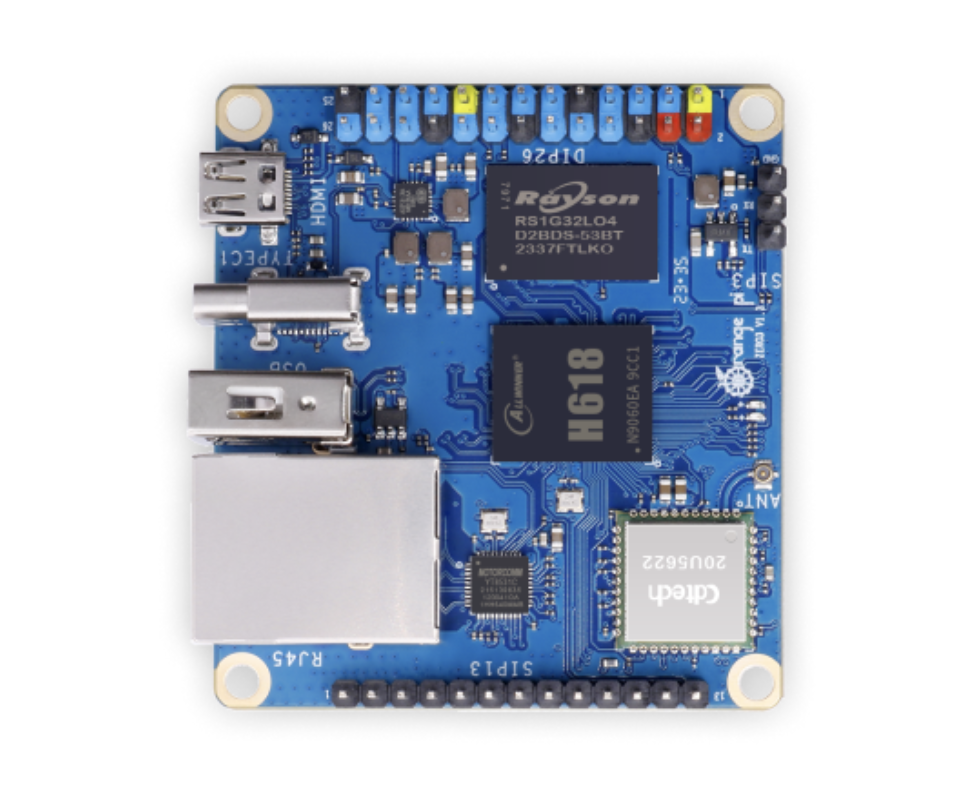

Orange Pi Zero 3 This guide enables Thistle Verified Boot (TVB) on Orange Pi Zero 3 by validating a signed kernel before boot. If you only need OTA updates without boot‑time verification, follow the Quick path in the OTA guide instead: hardware/orange_pi/zero3_ota_ab_update.

​
Board setup (vendor/community docs)

​
Default credentials

  • Orange Pi OS (official): oem / oem (hostname: orange-os.local)

​
Prerequisites

  • Orange Pi Zero 3 running a Linux image with U‑Boot (Orange Pi OS)
  • Access to Thistle Control Center (project with TVB signing enabled)

​
Prepare Kernel for Signing

  1. Copy the board’s kernel image to a workstation:
scp oem@orange-os.local:/boot/Image ./kernel || scp oem@orange-os.local:/boot/vmlinuz ./kernel
  1. In Thistle Control Center, create a Signed Firmware bundle for TVB and upload kernel. Download kernel-sig.
TVB signing happens in Thistle Control Center; you do not need TRH on the workstation for TVB specifically. For OTA flows, see the OTA guide for TRH/TUC download commands.

​
Deploy Signature and Boot Script

  1. Copy kernel-sig to the board’s boot partition:
scp kernel-sig oem@orange-os.local:/tmp/
ssh oem@orange-os.local 'sudo cp /tmp/kernel-sig /boot/kernel-sig && sudo chmod 644 /boot/kernel-sig && sync'
  1. Ensure U‑Boot loads the kernel and checks the signature using a public key provisioned from your Thistle project. If needed, integrate the Thistle boot script and ensure it runs at boot (see Thistle U‑Boot). On Orange Pi OS, U‑Boot typically reads the boot partition at /boot; place boot.scr there. Some builds use extlinux.conf; in that case, adapt your integration to call TVB verification before booting the kernel.

​
Provision TVB Public Key

You must make the TVB public verification key available at boot. There are two supported approaches:
  1. On your workstation, copy the public key from Thistle Control Center (Settings → Access → Signed Firmware) into a file:
cat > tvb-pubkey.pem << 'EOF'
<paste the TVB public key here>
EOF
  1. Copy it to the device and place it on the boot partition:
scp tvb-pubkey.pem oem@orange-os.local:/tmp/
ssh oem@orange-os.local 'sudo mv /tmp/tvb-pubkey.pem /boot/tvb-pubkey.pem && sudo chmod 0644 /boot/tvb-pubkey.pem && sync'
  1. Ensure your U‑Boot boot script (boot.scr) refers to the same path (for example /boot/tvb-pubkey.pem) when verifying kernel against kernel-sig before booting. If you are using a custom script, keep the key, kernel, and signature paths consistent:
/boot/kernel         # or /boot/Image or /boot/vmlinuz on your OS
/boot/kernel-sig     # signature downloaded from Thistle Control Center
/boot/tvb-pubkey.pem # public verification key (this step)

​
Option B: Embed the public key into U‑Boot (advanced)

Embed the public key into the U‑Boot build when you manage and rebuild U‑Boot for your Orange Pi image. This approach avoids storing a separate key file but requires a U‑Boot rebuild and update on the device. At a high level:
  • Generate or obtain the public key used by Thistle TVB (copy from Thistle Control Center) and convert it to the format your U‑Boot integration expects (for example, a DTS include)
  • Add the key to the U‑Boot configuration (signature key node) as per your BSP’s verified‑boot flow
  • Rebuild U‑Boot and update your boot media once
Only use this method if you control the U‑Boot build for your image; otherwise prefer Option A.

​
Verify at Boot

Reboot and observe serial console logs. A valid signature results in normal boot; otherwise, boot fails and the system falls back per script.

​
References

  • Armbian overlays and device‑tree guidance for Allwinner H616/H618 families: community discussions on I²C/SPI overlays can help when adding peripherals: I²C/SPI overlays
  • General OS flashing: Prepare microSD
